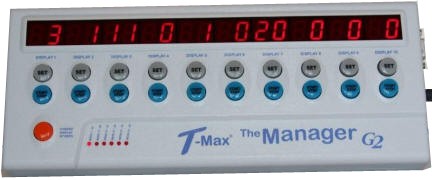

Description: The T-Max Manager G2 is a front desk control unit for the T-Max timers. It can be connected to up to 60 T-Max 3W/G2s to control up to 60 tanning units in a single salon. It also works with tanning beds with T-Max Certified Timers installed in them. The display consists of 10, two-digit LED displays along the top of the T-Max Manager G2 with a Start/Stop and Set button below each display for manual control. A Horizontal row of 6 LEDs indicates which bank of ten beds are being displayed. The T-Max Manager G2 can be used manually or be controlled with a PC using today's most popular tanning software. Up to eight T-Max Manager G2s and/or T-Max Manager/Pros can be connected in a single salon. The T-Max Manager G2 can also connect to our G2 Access point, allowing you to control your salon without the need to run cables throughout your salon. For more information on the G2 Access Point, click here. Specifications: Size:
5"H x 10"W x 2"D Power: 9VDC, 1Amp Displays:
20, 7 Segment LED displays showing times and status' of 10 units.. 6 LEDs shows which banks of tanning units are being displayed, 1-10, 11-20, etc.. I/O:
Computer: RS-232 protocol, DB9F w/6' Cable
Wired: RJ-22 Connection
Wireless: RJ-11 Connection to connect the G2 Access Point
Power: 2.1mm Connector Software:
ADNET 2K Utility Program
32KRAM
5MBytes Hard Disk Drive Space
Windows 98, NT, 2000, XP and Vista
